Beyond Shortest Path: Building an Enterprise Multi-Modal Logistics & Chokepoint Engine with Neo4j and Gemini

2. Modeling the Multi-Modal Property Graph Schema

In global freight, relationships are not static lines; they are rich, multi-dimensional pipelines. We designed a property graph schema connecting 24 strategic global locations, including Tier-1 container seaports, inland intermodal rail hubs, distribution centers, and critical maritime chokepoints.

The Core Data Model Entities:

• Location Nodes: Seaports (Shanghai, Ningbo, Singapore, Rotterdam, LA, Durban, Santos), Inland Rail Hubs (Duisburg, Chicago, Zhengzhou, Johannesburg), and Chokepoints (Suez, Bab-el-Mandeb, Hormuz, Panama, Malacca, Cape of Good Hope).
• CORRIDOR Edges: Store multi-objective business attributes: transit_time_hrs (hours), cost_usd_per_teu ($/container), co2_kg_per_teu (GLEC carbon intensity), reliability (0.0 to 1.0), and is_chokepoint (Boolean).

3. Multi-Objective Path Traversal in Cypher

Standard routing tools calculate single-metric Dijkstra shortest paths. In GlobalRoute-GraphAI, we execute parameterized Cypher traversals with dynamic reduce() aggregations to simultaneously balance lead time, freight cost ($/TEU), and Scope 3 carbon footprint:

MATCH p = (src:Location {code: $origin})-[r:CORRIDOR*1..6]->(dst:Location {code: $dest})
WHERE NONE(n IN nodes(p) WHERE n.code IN $blocked_chokepoints)
WITH p,
     reduce(t = 0, rel IN relationships(p) | t + rel.transit_time_hrs) AS Total_Hours,
     reduce(c = 0, rel IN relationships(p) | c + rel.cost_usd_per_teu) AS Total_Cost_USD,
     reduce(e = 0, rel IN relationships(p) | e + rel.co2_kg_per_teu) AS Total_CO2_KG,
     reduce(minRel = 1.0, rel IN relationships(p) |
        CASE WHEN rel.reliability < minRel THEN rel.reliability ELSE minRel END) AS Min_Reliability,
     [n IN nodes(p) | n.name] AS Path_Sequence,
     [n IN nodes(p) | n.code] AS Path_Codes
RETURN Total_Hours, Total_Cost_USD, Total_CO2_KG, Min_Reliability, Path_Sequence, Path_Codes
ORDER BY Total_Hours ASC
LIMIT 10;

How Multi-Objective Sorting Functions:

• Fastest Route: Orders paths by Total_Hours ASC to minimize lead time.
• Cheapest Route: Orders paths by Total_Cost_USD ASC to protect profit margins against spot rate surges.
• Greenest Route: Orders paths by Total_CO2_KG ASC for corporate ESG compliance.
• Highest Reliability: Maximizes Min_Reliability DESC to avoid high-congestion corridors.

4. Real-Time Crisis Simulation: 4 Geopolitical Scenarios

By isolating compromised nodes on the fly (WHERE NONE(n IN nodes(p) WHERE n.code IN $blocked)), the engine calculates optimal bypasses without re-indexing the database:

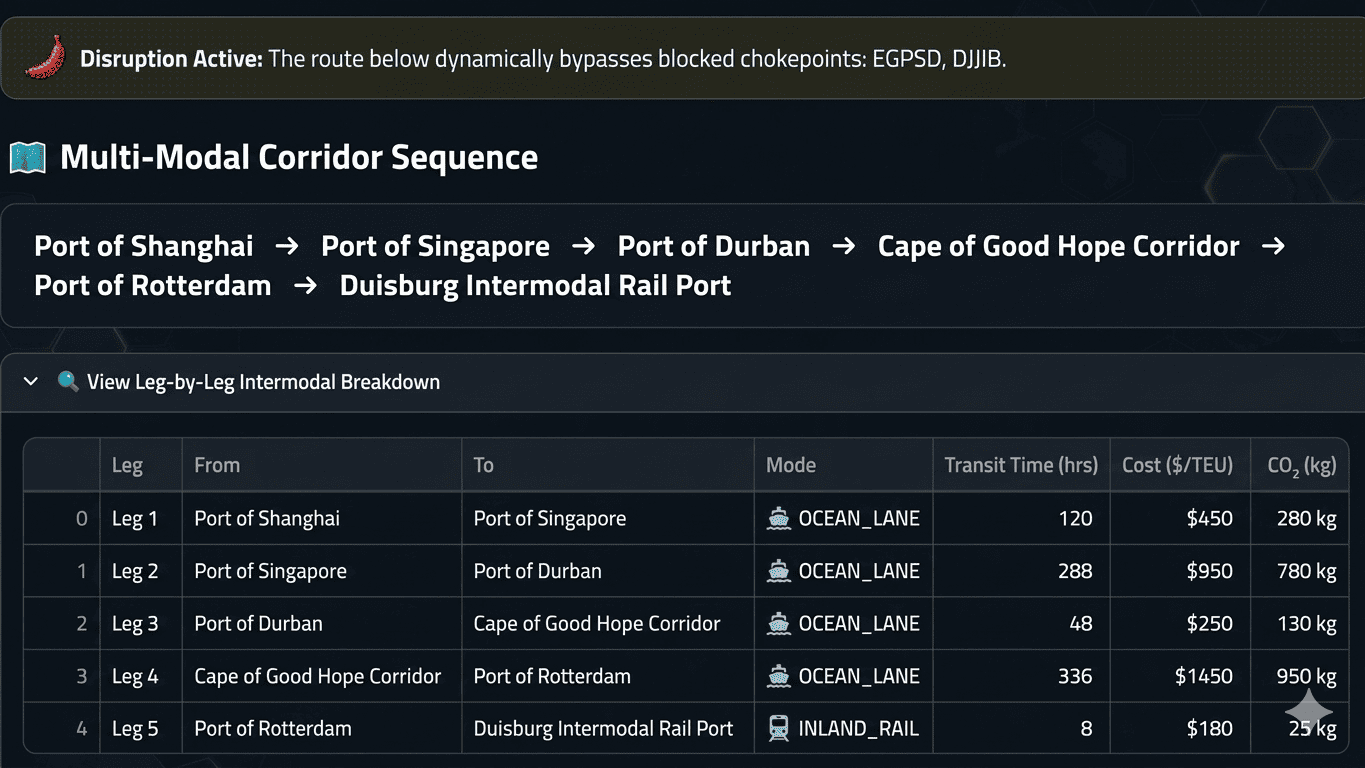

Figure 2: Multi-Modal Corridor Sequence & Leg-by-Leg Intermodal Breakdown during a Suez Disruption Simulation

5. Mathematical Validation & Multi-Leg Step-by-Step Breakdown

For a voyage from Shanghai to Duisburg Rail Port via Cape of Good Hope, the graph compounds across all 5 intermodal legs:

These metrics match empirical market benchmarks from the Drewry World Container Index (WCI), Xeneta, and the Global Logistics Emissions Council (GLEC) framework.

6. Grounding AI: Google Gemini Supply Chain Advisor

Generative AI models are notoriously prone to hallucinating geography, trade agreements, and tariff regulations when querying unstructured text. In GlobalRoute-GraphAI, we implement strict topological grounding.

Before Google Gemini (gemini-3.5-flash-lite) generates a word, our Python engine queries Neo4j and injects the deterministic path facts into a constrained system prompt:

You are an Executive Supply Chain & Maritime Routing AI Advisor.
Analyze the following multi-modal freight routing facts retrieved directly from the Neo4j Knowledge Graph.

--- RETRIEVED NEO4J KNOWLEDGE GRAPH FACTS ---
Origin: Port of Shanghai (CNSHA)
Destination: Duisburg Intermodal Rail Port (DEDUI)
Active Route: Shanghai ➔ Singapore ➔ Durban ➔ Cape of Good Hope ➔ Rotterdam ➔ Duisburg
Total Transit Time: 33.3 Days (800 Hours) | Total Cost: $3,280/TEU | Scope 3 CO2: 2,165 kg/TEU
Corridor Reliability: 95.0%
Active Disruption: Suez Canal & Red Sea Blocked
--------------------------------------------

Write a 3-paragraph Executive Advisory Brief for a Chief Supply Chain Officer:
1. Route Feasibility & Strategic Breakdown (Ocean vs Inland Rail).
2. Risk & Resilience Assessment (Chokepoints traversed or bypassed).
3. Actionable Executive Recommendations (Bunker fuel risk, customs clearance buffers, Scope 3 ESG compliance).

Because Gemini is strictly grounded in graph facts, it produces verifiable, audit-ready executive intelligence without speculative hallucinations.

7. Architectural Comparison: Legacy vs GraphAI

8. Frequently Asked Questions (FAQ)

9. Conclusion & Next Steps

Global supply chain resilience is no longer about predicting the future — it is about building dynamic architectures that can adapt to disruption in real-time.

By replacing flat relational tables with a Neo4j Knowledge Graph, logistics leaders gain the power to simulate geopolitical shocks, balance complex financial and ESG trade-offs, and generate explainable, auditable executive briefings with Google Gemini.

By moving from static distance heuristics to multi-objective graph traversals, enterprise teams can finally protect their margins, meet strict decarbonization targets, and maintain continuous supply continuity across an unpredictable global trading landscape.
